HANS HF700

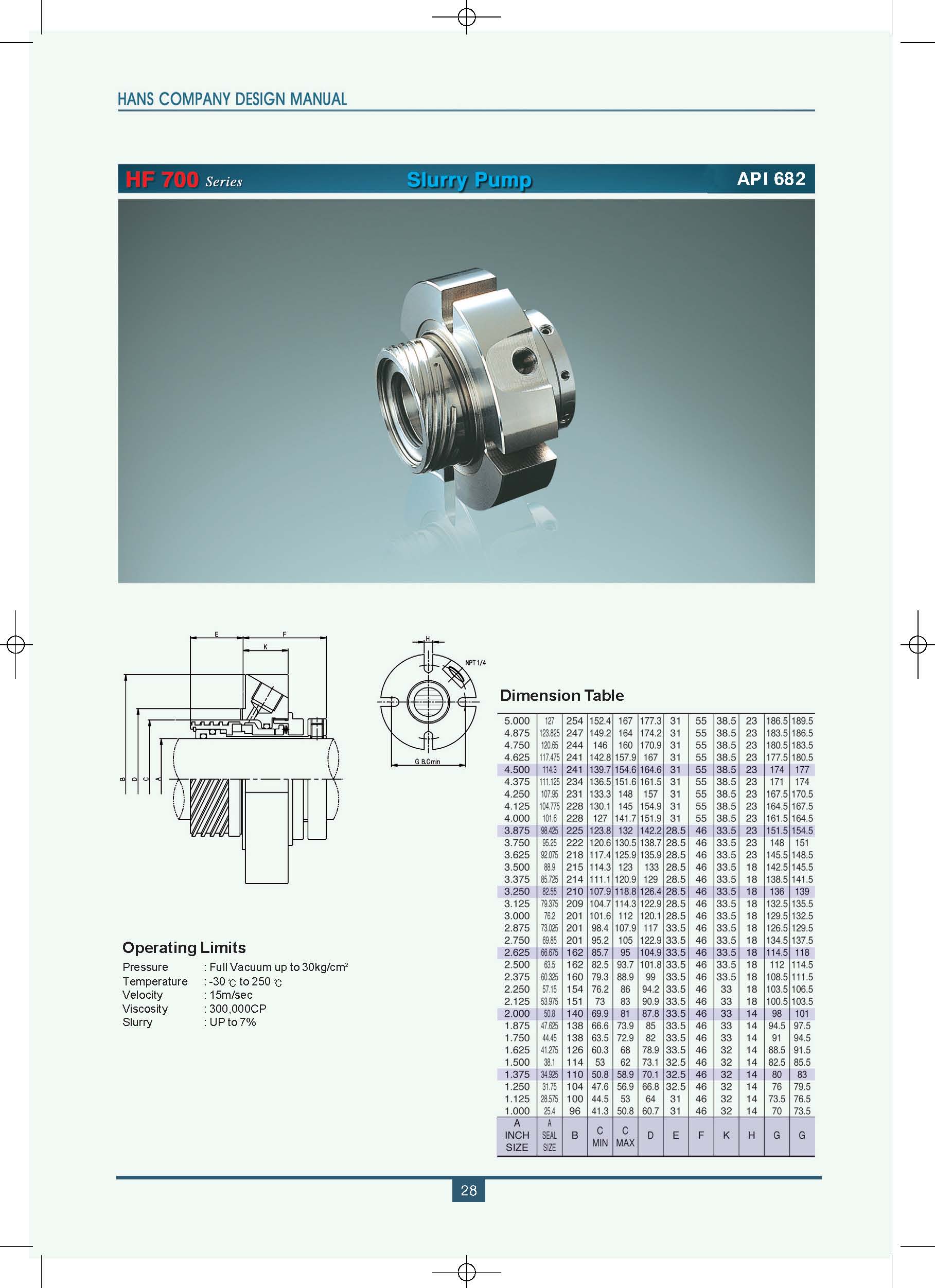

New Development of Mechanical Seal for a Slurry Pump HF700(Korea Patent 0181674)
1. A protection of the slurry inflow keeps the seal faces clean.
The pumping screw expels the slurry fluids from the sealing surfaces depending on the shaft speed. This increases the service life of new mechanical face seals.
2. The Model HF700 provides the high quality and OEM manufacturing order depending on the operation conditions from the customers.
The model HF700 maximize the operating life depending on the sealed fluids, operating temperatures and pressures. The spring can easily change the axial forces depending on the shaft speed.
3. The Model HF700 guarantees easy installation and handling.
The Model HF700 is a preset single cartridge seal, which permits easy installation and handling. This cartridge type design makes mounting simple, fast, and accurate. Only the weared part can easily be replaced without any problems.
